Laser power | 1000-6000W | Cutting thickness | 6~25mm |
The laser wavelength | 1070nm±10nm | Aimed and positioning | Red light |
Min.line width | 0.1mm | Power supply | 380V/50HZ |
Repeat position accuracy | ± 0.02mm | Cooling mode | Water cooled |
Cutting range | 1500 x3000mm | N.W. | ≥5000Kg |

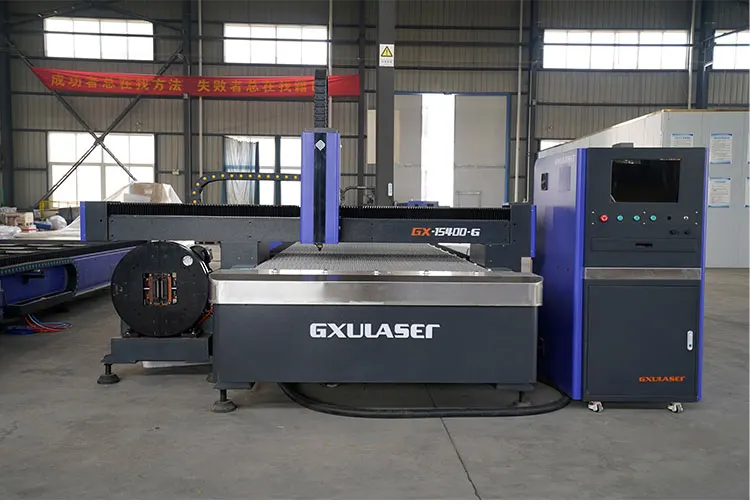

Plate and tube integrated fiber laser cutting machine
- Professional cutting square tube, round tube, rectangular tube, D-shaped tube and hexagonal tube and other types of pipes, automatic deviation correction function, find the center of the pipe material, intelligent, convenient and practical. Centralized operation, flexible processing and clamping are convenient and quick.
- Sheet welding structure body, after quenching, tempering and stress relief treatment, the table plane and installation holes are processed by high-precision gantry milling at one time, which ensures the strength and precision life of the machine tool;
- Adopt imported grinding-grade ball screw, imported high-precision linear guide, with high precision;
- Using servo drive control, stronger torque, faster and more stable operation;
- Follow-up smoking system, good smoking effect and energy saving
- Using laser cutting head and laser lens, the focusing spot is smaller, the cutting line is finer, the work efficiency is higher, and the processing quality is better;
- Professional laser cutting CNC control system, with intelligent typesetting function, easier operation and higher efficiency.
- Fully automatic centering power chuck to ensure long pipes are clamped, flatness and feeding accuracy when tightened.
- Simple integrated design covers a small area, one machine can cut both plates and pipes, and it is a high-efficiency force processing machine.
1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;
2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;
Support Door to Door
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
every machine, including every machine parts, we must be tested carefully, and every machine machine before delivery.
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
A: 2-year warranty for engraving machine，3-year warranty for laser machine.Life time maintenance.
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
